A box contains 4 balls numbered 1 to 4. Record a sample space using a tree diagram for the following experiments: Class 9

Question 1.

A box contains 4 balls numbered 1 to 4. Record a sample space using a tree diagram for the following experiments: Class 9

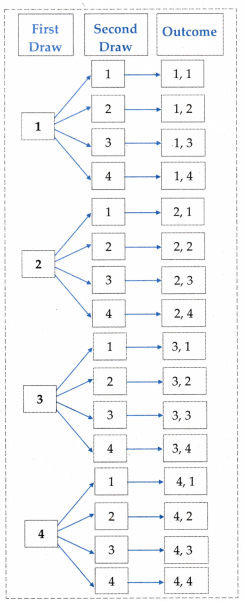

i. A ball is drawn, and the number is recorded. Then the ball is returned, and a second ball is drawn and recorded.

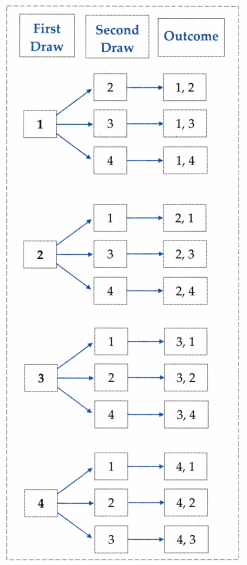

ii. A ball is drawn and recorded. Without replacing the first ball, the experimenter draws and records a second ball.

iii. What are the sizes of these two sample spaces?

Solution:

iii. The sizes of the two sample spaces, with replacement and without replacement are 16 and 12 respectively.
