Which solid corresponds to the given top view, front view, and side view? Class 8

Which solid corresponds to the given top view, front view, and side view? Class 8

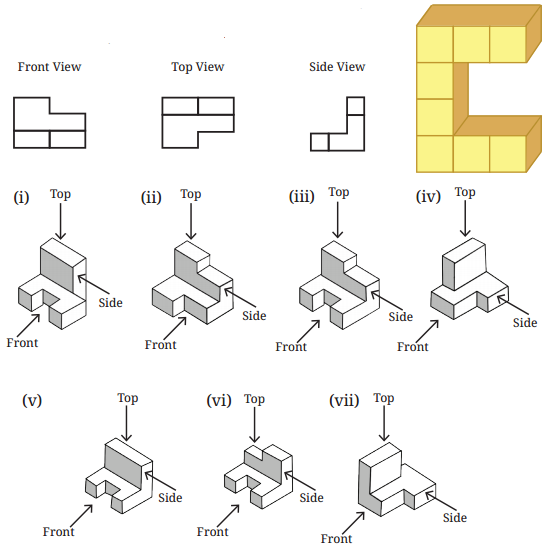

Question 1.

Which solid corresponds to the given top view, front view, and side view? Class 8

Solution:

Solid (ii).

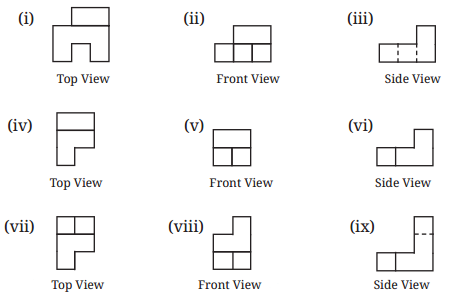

Question 2.

Using identical cubes, make a solid that gives the following projections. Class 8

Solution:

Do as diected for each parts (i) to (ix) using unit cubes in the Maths lab.

Question 3.

Find the number of cubes in this stack of identical cubes. Class 8

Solution:

Number of cubes = 1 + 3 + 6 +10 = 20
