Question 1.

Column I shows different positions in which one pole of a magnet is placed near that of the other. Column II indicates the resulting interaction between them for different situations. Fill in the blanks. Class 6

Answer:

Column I → Column II

N —N → Repulsion

N —S → Attraction

S — N → Attraction

S — S → Repulsion

Question 2.

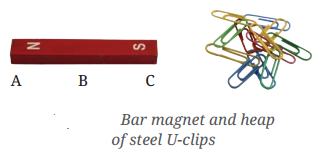

Atharv performed an experiment in which he took a bar magnet and rolled it over a heap of steel U-clips (Fig.). Class 6

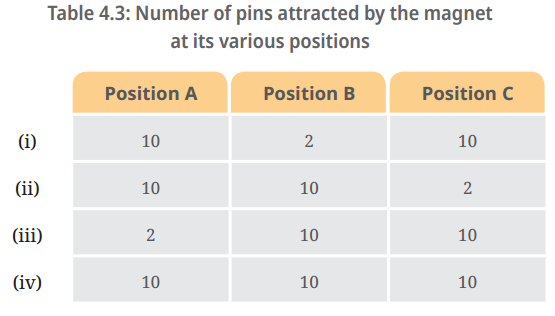

According to you, which of the options given in Table 4.3 (given in textbook, page 75) is likely to be his observation?

Answer:

(i) is the correct option of his observation.

Position A (North pole) : High attraction

Position B (Middle) : Low attraction

Position C (South pole) : High attraction

Magnetic force is strongest at the poles and the weakest at the middle.
